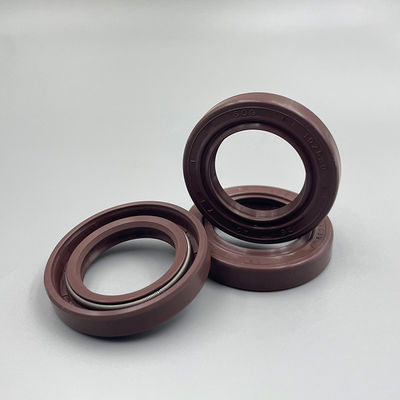

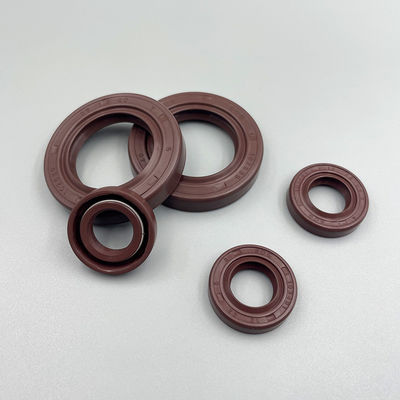

Tc Skeleton Oil Seals Fluororubber Material Water-resistant High-temperature Oil Seal Gasket
| Lugar de origem | CHINA |
|---|---|
| Marca | DZK |
| Certificação | ROHS |
| Número do modelo | Selos de óleo de esqueleto TC |
| Quantidade de ordem mínima | 100pcs |
| Preço | negotiate |
| Detalhes da embalagem | 100pcs/bolsa |
| Tempo de entrega | 7-10 dias |
| Termos de pagamento | L/c, t/t |
| Habilidade da fonte | 1000000pcs/mês |
Contacte-me para amostras e cupons grátis.
WhatsApp:0086 18588475571
conversamos: 0086 18588475571
Skype: sales10@aixton.com
Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.
xDetalhes do produto
| Nome do produto | Selos de óleo de esqueleto TC | Materiais | Fkm |
|---|---|---|---|
| Temperatura | -25 ° C a +240 ° C. | Cor | Marrom |
| Pressão | < 0,05 MPa | Médio | óleo mineral/óleo/água sintética |
| Características | resistente ao desgaste, resistente à corrosão, resistente ao calor, resistente a óleo, resistente ao | Faixa | Carros, eletrodomésticos, navios, aviação, petroquímicos, máquinas, etc. |
Descrição de produto
TC Skeleton Oil Seal | Heavy-Duty Metal Reinforced Shaft Seal
Double-Lip Design • Extreme Environment Protection • OEM Interchangeable
Product Overview
Fluorosilicone TC skeleton oil seals are composed of fluorosilicone rubber, metal skeletons, and spiral tension springs. The fluorosilicone rubber material provides excellent high-temperature resistance, corrosion resistance, and ozone aging resistance, allowing stable operation in environments ranging from -25°C to 240°C. They are suitable for rotary and reciprocating movements, effectively preventing lubricant leakage and blocking dust and impurities. They are widely used in automotive and industrial machinery fields.
Key Features & Benefits
- ✅ Metal-Reinforced Structure: Embedded steel skeleton prevents deformation under high pressure and load.
- ✅ Double-Lip Design: Primary lip retains oil; secondary lip blocks dust, dirt, and moisture.
- ✅ Wide Material Compatibility: NBR, FKM, ACM, and SILICONE options for oils, fuels, and chemicals.
- ✅ High-Temperature Resistance: Operates from -25°C to +240°C .
- ✅ OEM Interchangeable: Direct replacement for common TC-type seals in industrial and automotive systems.
Technical Specifications
| Parameter | Standard Range |
| Materials | FKM |
| Temperature | -25°C to +240°C |
| color | brown |
| medium | mineral oil/synthetic oil/water |
Applications
- Automotive Systems: Wheel hubs, transmissions, engines.
- Industrial Gearboxes: Heavy machinery, conveyor systems.
- Agriculture Equipment: Tractors, combines, harvesters.
- Construction Machinery: Excavators, bulldozers, cranes.
- Pumps & Compressors: Rotary shaft sealing under pressure.
Function/Feature
Fluorosilicone TC skeleton oil seal is an industrial sealing component that utilizes the excellent weather resistance of fluorosilicone material and a dual structure of TC type (main sealing lip + dustproof lip) to achieve dynamic sealing between the rotating shaft and the fixed housing. It effectively prevents internal lubricants from leaking, blocks external impurities from entering, and can withstand high temperatures and strong corrosion in harsh operating conditions.
